LYNXSPACE

LYNXROCKET V5

The Leading Project

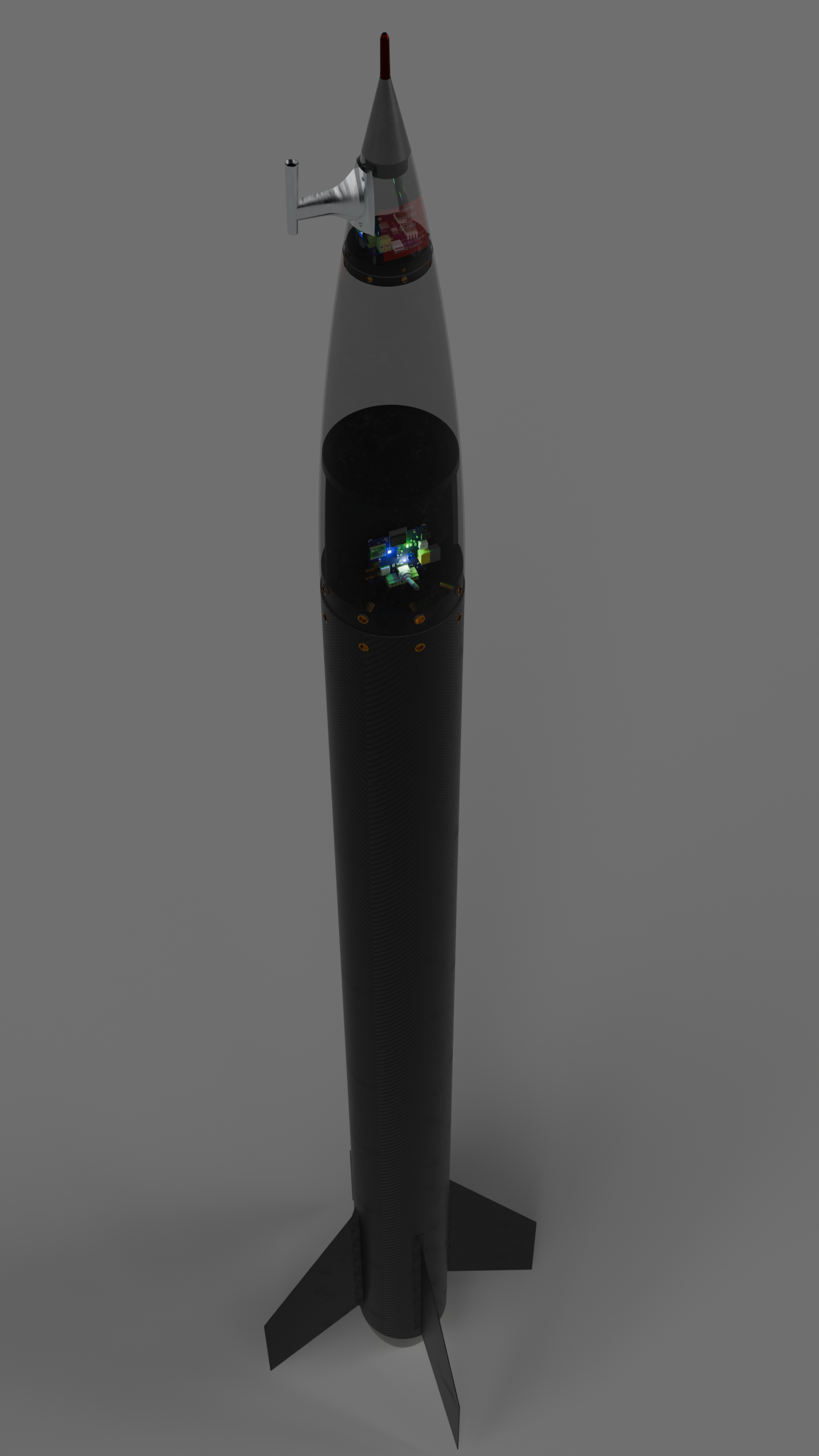

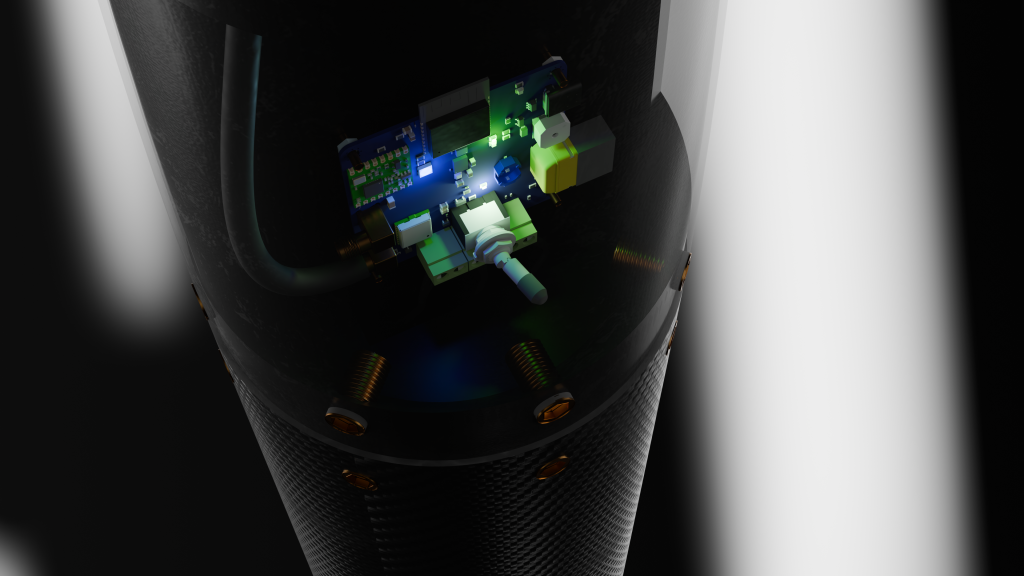

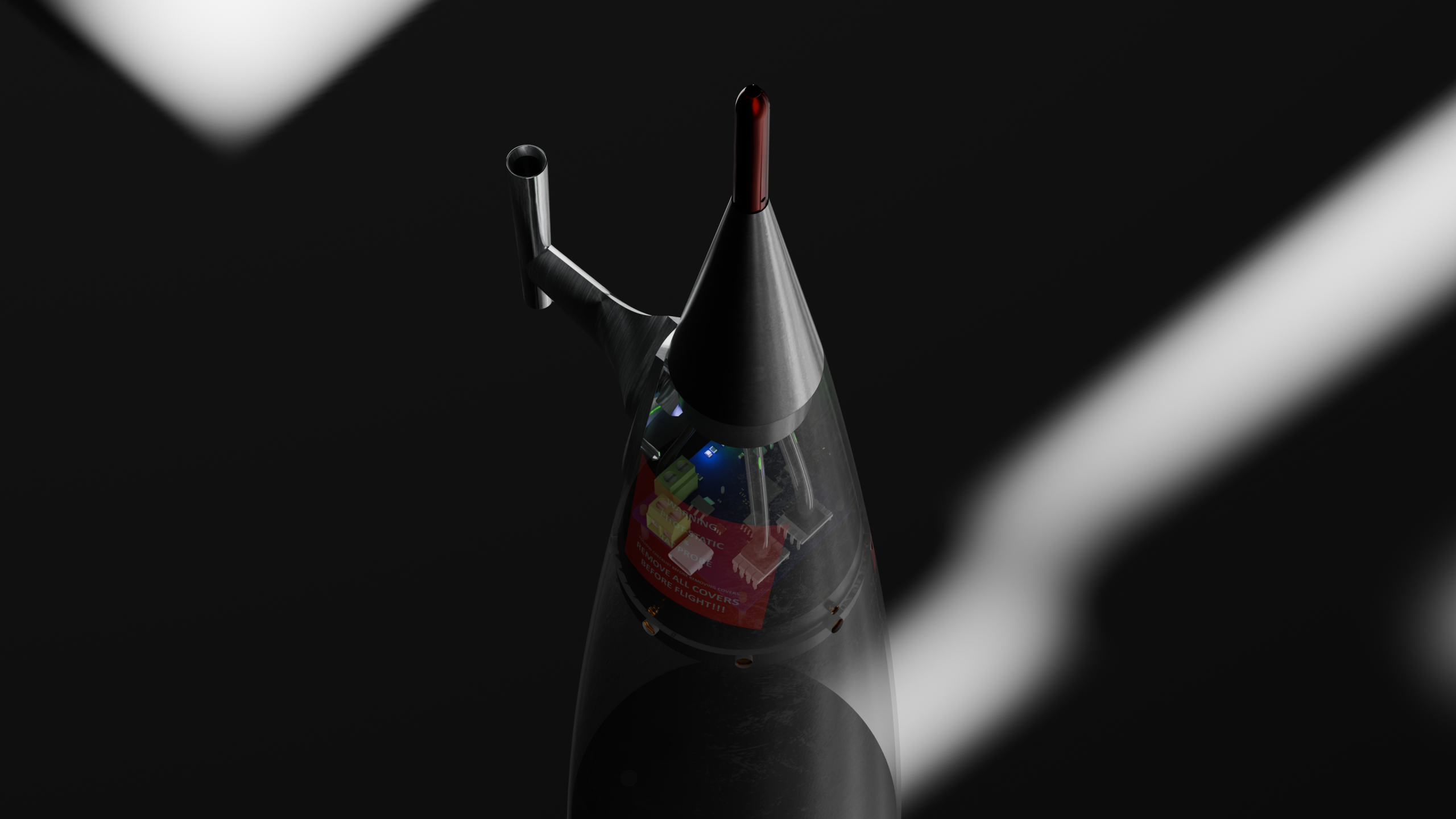

Our leading and most advanced project is the Lynxrocket V5. This project is designed for the EUROC competition and mission purposes. The Lynxrocket V5 is a high-power rocket aimed at reaching approximately 3000 m and Mach 1.2. These conditions allow us to test several onboard systems. The main system under evaluation is a pitot-static tube paired with an Air Data Computer (ADC), both designed, tested and built by Lynxspace. Another system integrated with the ADC is the TAT probe, rarely seen on high-power rockets. This probe increases the precision of Mach number calculations and improves the accuracy of other air-data and environmental measurements.

Specs

Apogee

Max speed

Thrust

Impulse

Mass

3392 m

402 m/s

3118 N

6131 Ns

17 Kg

Diameter

143.5 mm

Height

2.41 m

Materials

CFRP for the body and GFRP for nose cone
